CIOKS DC7, C8E & CRUX SUPERPOWER BUNDLE⚡Power Pedals + Quad Cortex, Line 6 & Other FX Processors

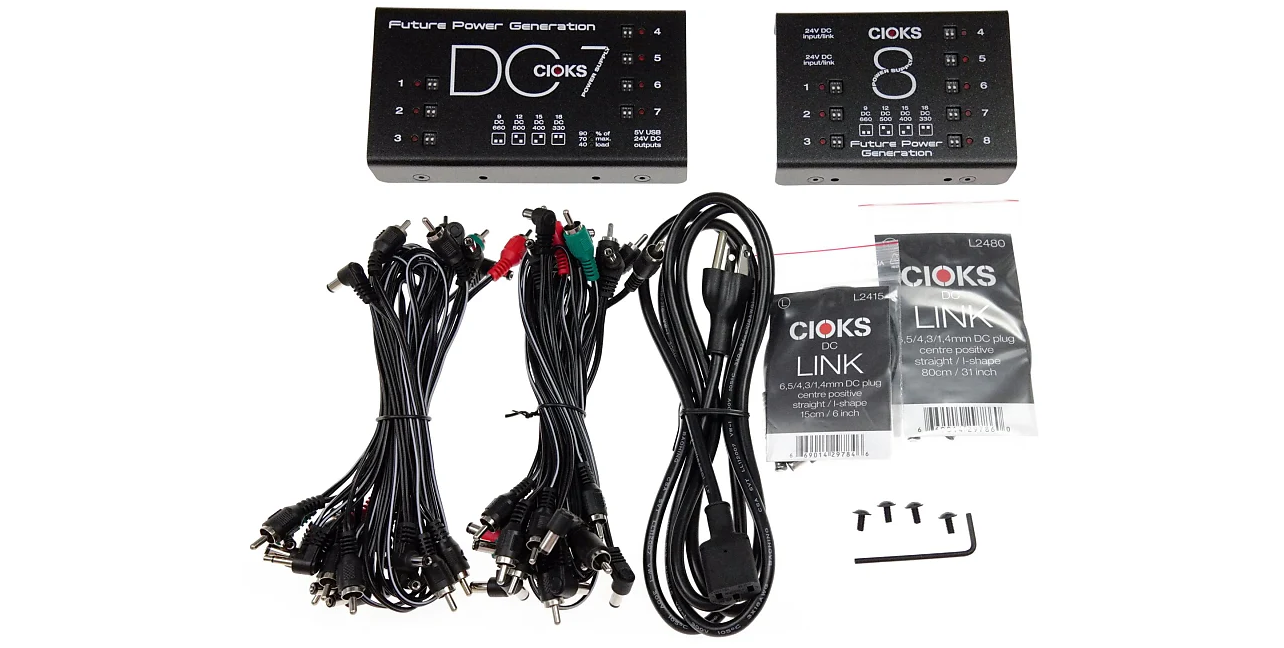

The Ultimate Pedalboard Power Bundle! Cioks DC7, C8e and Crux!

The Crux is the ultimate add-on to CIOKS DC7!

The Cioks Crux Solves the High Power requirement for The Neural DSP Quad Cortex, Line 6 Helix Stomp and more!

Shane Star Guitars and Gear is an authorized CIOKS retailer.
Factory warranty.

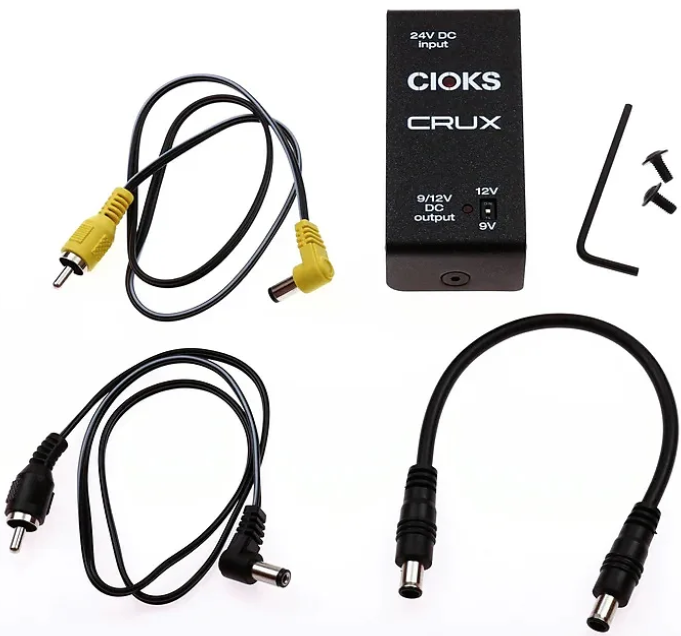

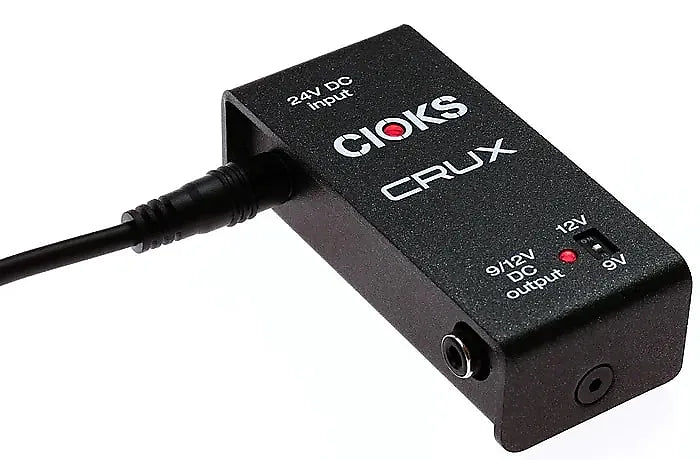

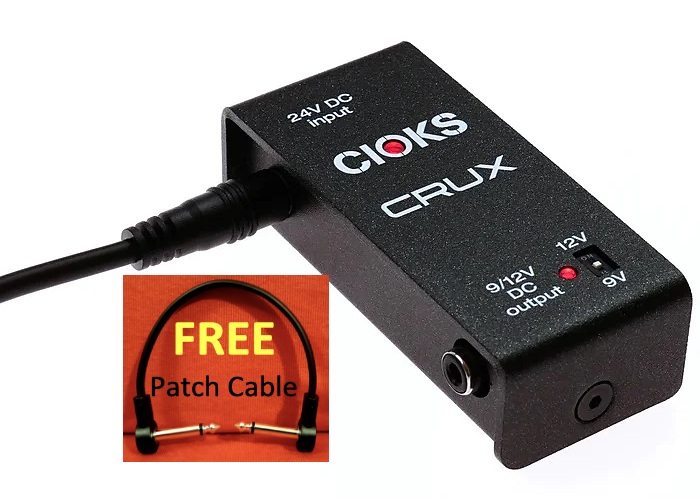

Features on Crux:

• Converts the 24V aux outlet on DC7 into a powerful 9 or 12V outlet with a total power of 24W

• Powers a Neural DSP Quad Cortex with DC7 saving you 4 outlets on the DC7

• Overload and short circuit protected outlet

• Overvoltage protected outlet protecting your equipment

• CIOKS CRUX has the same 1-inch profile (25,4mm) as CIOKS DC7

• Compatible with CIOKS MiniGRIP for drill-free mounting underneath Pedaltrain boards*

• One 24V DC Link cable included

• Two Flex cables included

• Designed in Denmark, assembled in Poland

• 5-year worldwide warranty

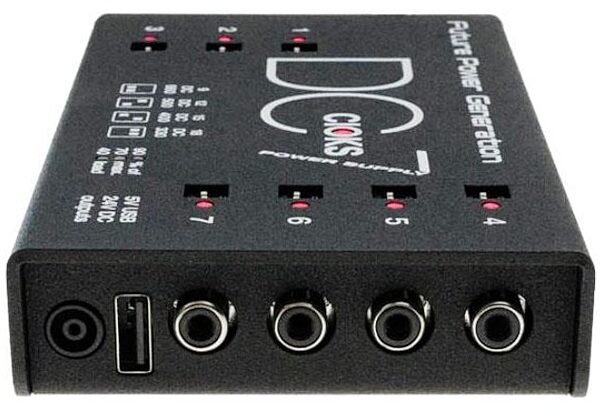

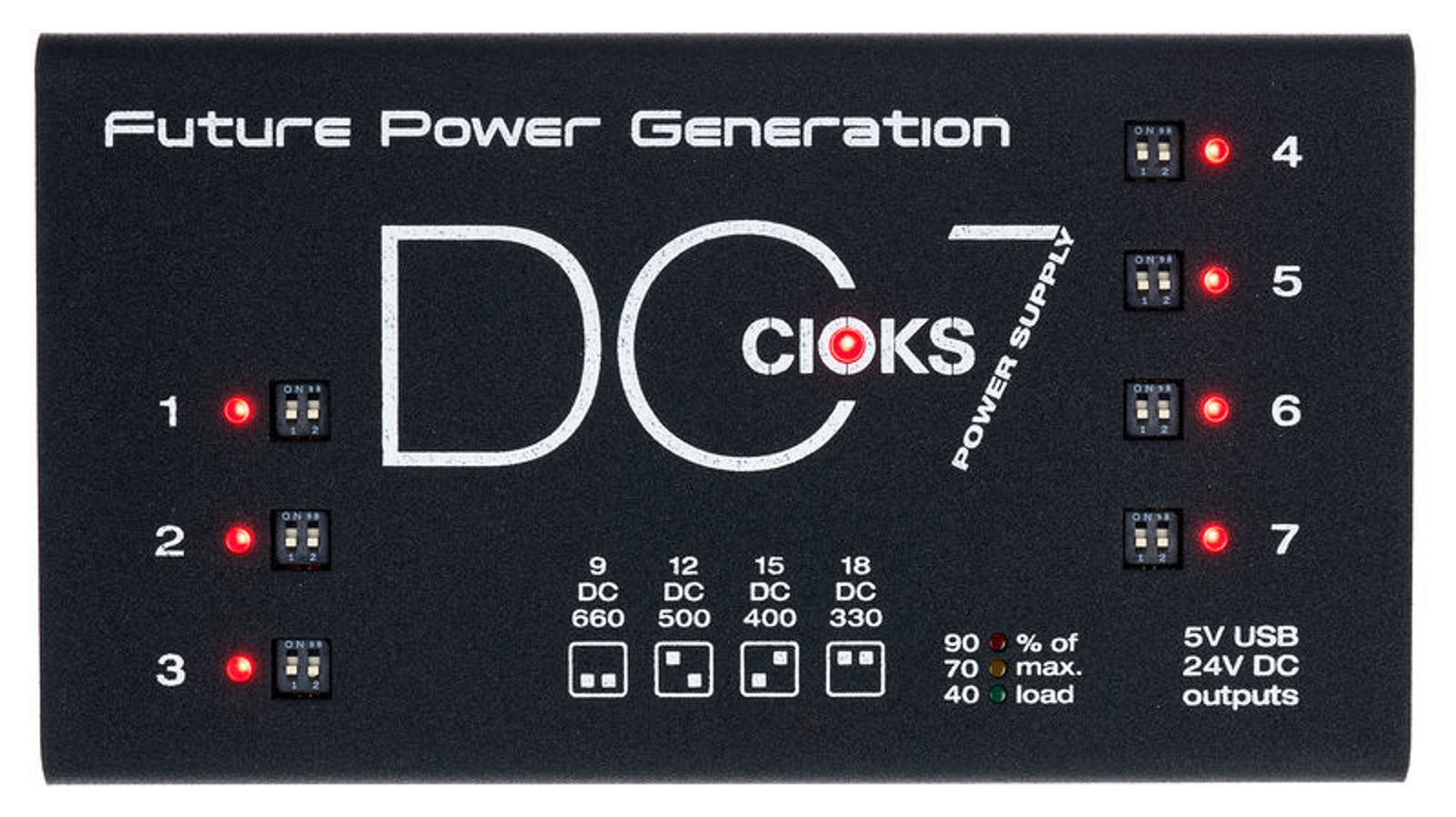

DC7 Features:

• 12 Flex cables included

2-stage switch-mode power supply topology
• Groundbreaking 1-inch profile
• 7 isolated outlets
• 660mA at 9V DC on each outlet
• 4 different voltages on each outlet
• 5V USB outlet
• 24V DC auxiliary outlet
• Expandable with CIOKS 4 or CIOKS 8 or Crux
• Built-in power meter
• 12 Flex cables included
• Universal mains input 90 to 265V AC
• Compatible with CIOKS GRIP V2
• 5-year worldwide warranty

Mounting hardware for Pedaltrain and Temple Audio boards included

• Compatible with CIOKS GRIP for drill-free Pedaltrain mounting

• Designed in Denmark, assembled in Poland

• 5-year worldwide warranty

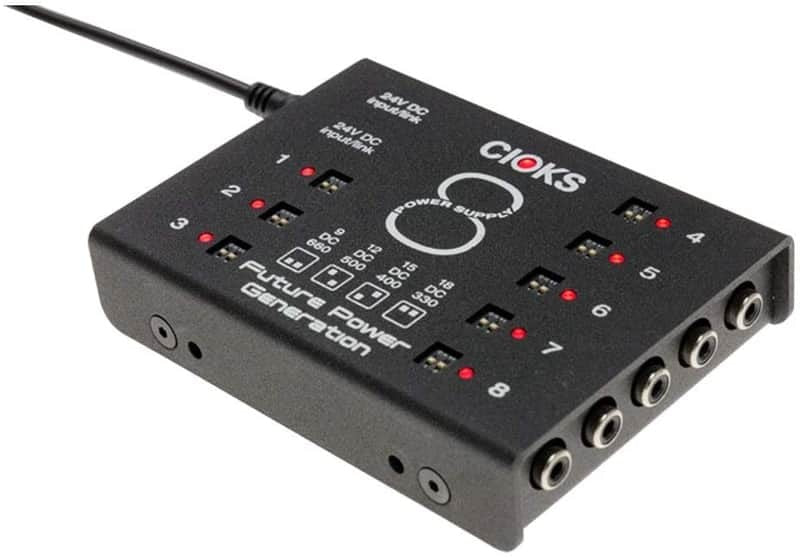

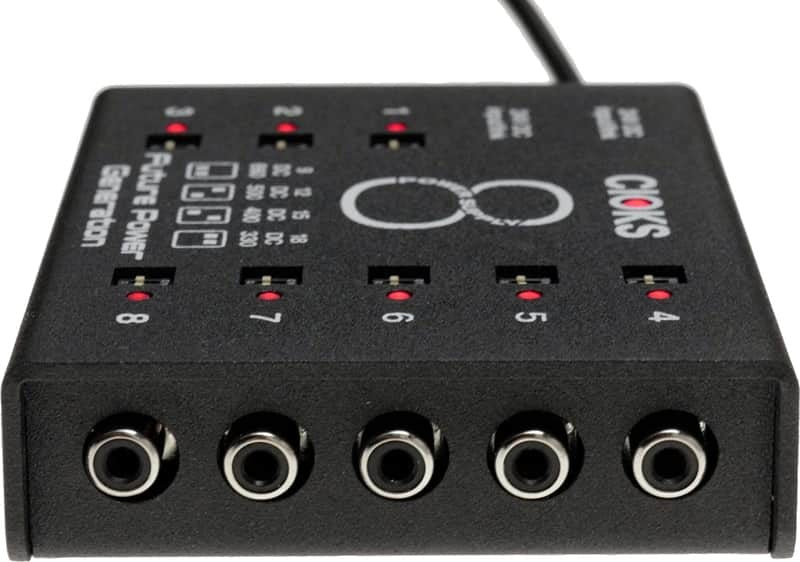

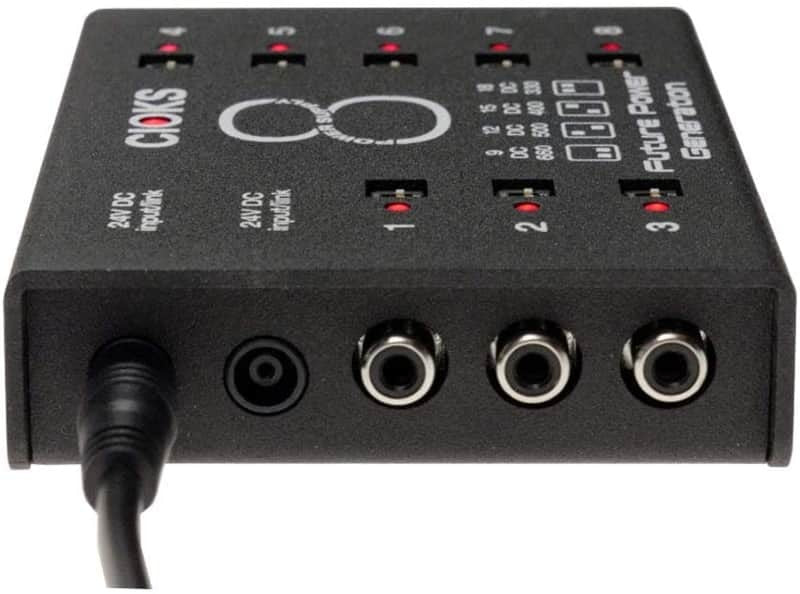

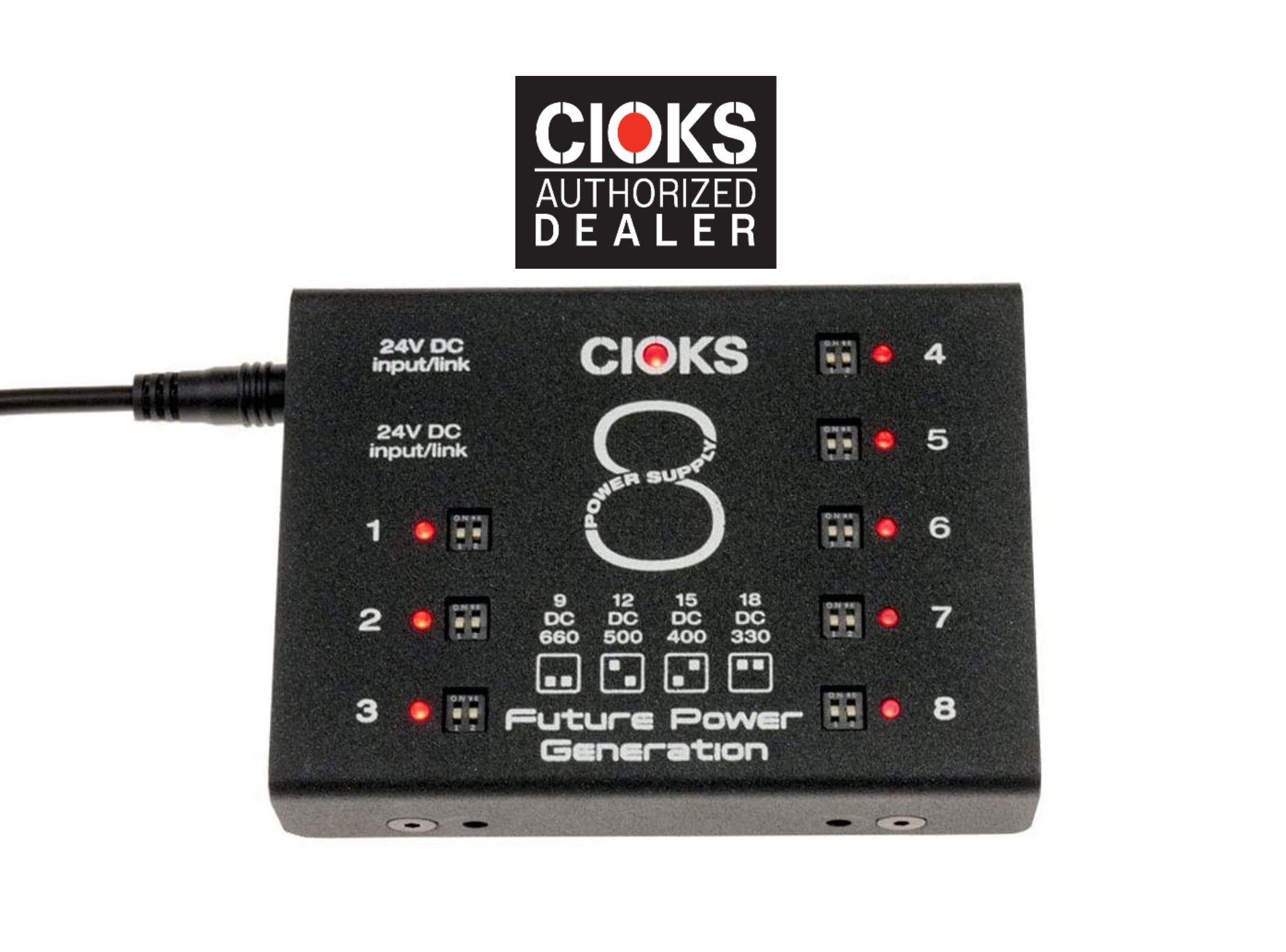

Cioks C8 Features:

The CIOKS 8 Expander Kit adds an extra eight isolated power outlets to your pedalboard. Not only that, but this small unit is capable of powering almost any pedal on the market. Each power outlet is individually switchable between 9, 12, 15, and 18 volts, making it easy to give your pedals the voltage they need.
Selectable Power Output
The CIOKS 8 is loaded with pairs of DIP switches beside each outlet. Each pair of switches controls how much voltage is passed through its assigned outlet. With both switches down, the outlet will pass 9V current. Raise the left switch, and you'll get 12V. Raise the right switch (with the left in the down position), and the device can power 15V pedals. Push both switches up, and you'll get 18V. The customizable power feature allows you to give special voltage to the pedals that need it without having to add a specialized power supply to your board.
Advanced LED monitoring keeps you on top of everything
The CIOKS 8 is jam-packed with advanced LED monitoring. Individual status LEDs on each outlet remain lit under normal conditions, dim when you reach the upper limits of the outlet's voltage, and shut off upon overload. A global status LED inside the CIOKS logo's "O" warns you if you exceed the unit's power limit.
Included Flex cables:
6 x Standard Flex Type 1 — 5.5mm/2.1mm center-negative DC plug, black
1 x Standard Flex Type 2 — 5.5mm/2.1mm center-positive DC plug, red
1 x Standard Flex Type 4 — 5.5mm/2.5mm center-positive DC plug, green
1 x Standard Flex Type 5 — 3.5mm tip positive jack plug, black
1 x Split Flex Type 1 — 5.5mm/2.1mm center-negative DC plug, black
1 x 3-way Daisy Chain Type 1 — 5.5mm/2.1mm center-negative DC plug, black
CIOKS 8 Power Supply Features:
Supplies up to eight pedals with power
Works as an expansion for CIOKS DC7 units (power link cable included)
Adjustable outlet levels from 9-18V
Ultra-compact design saves space on your board
Individually isolated power outlets reduce unwanted noise
Includes 12 Flex cables for powering your pedals
Includes mounting hardware for Pedaltrain and Temple boards
