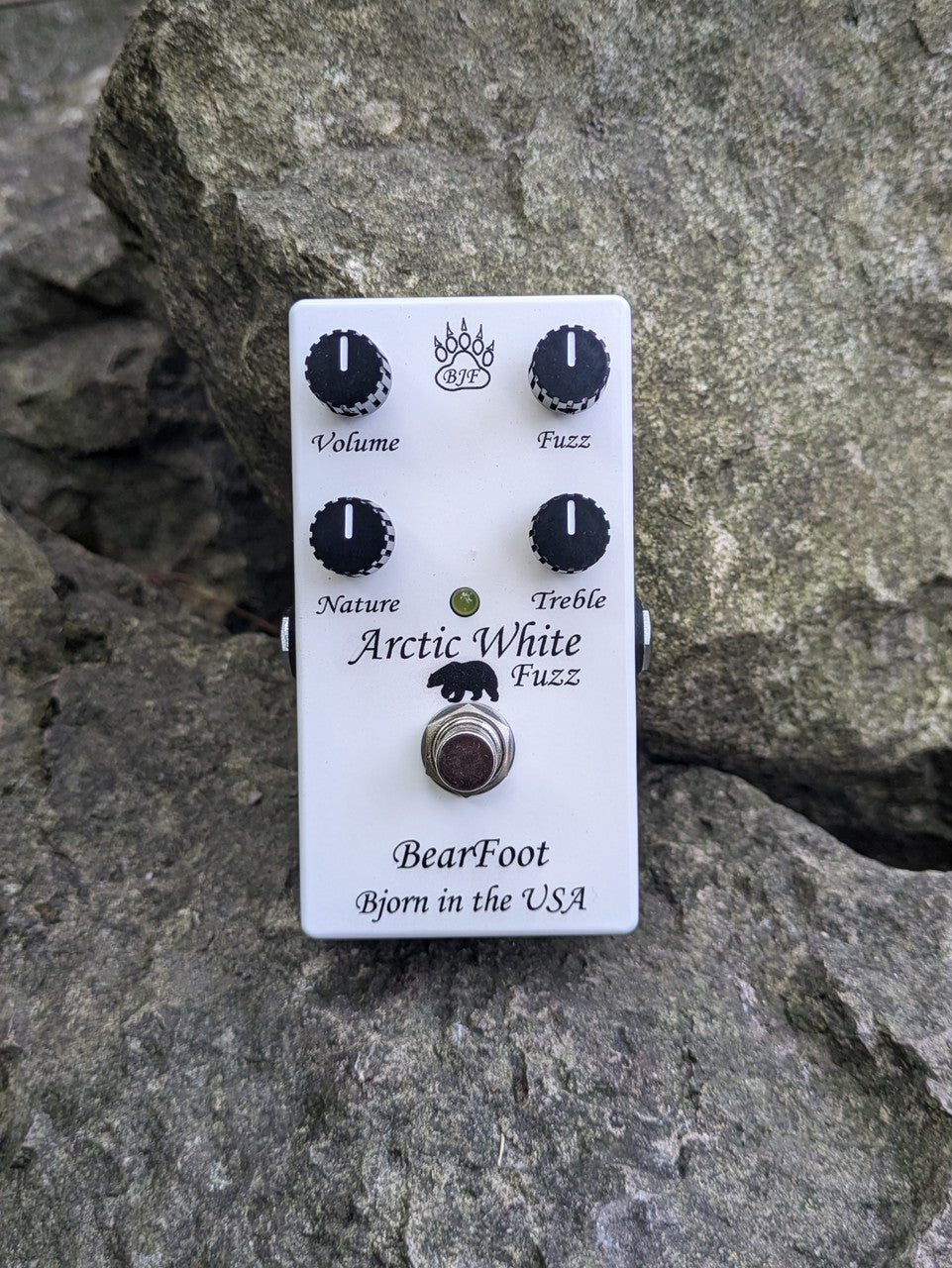

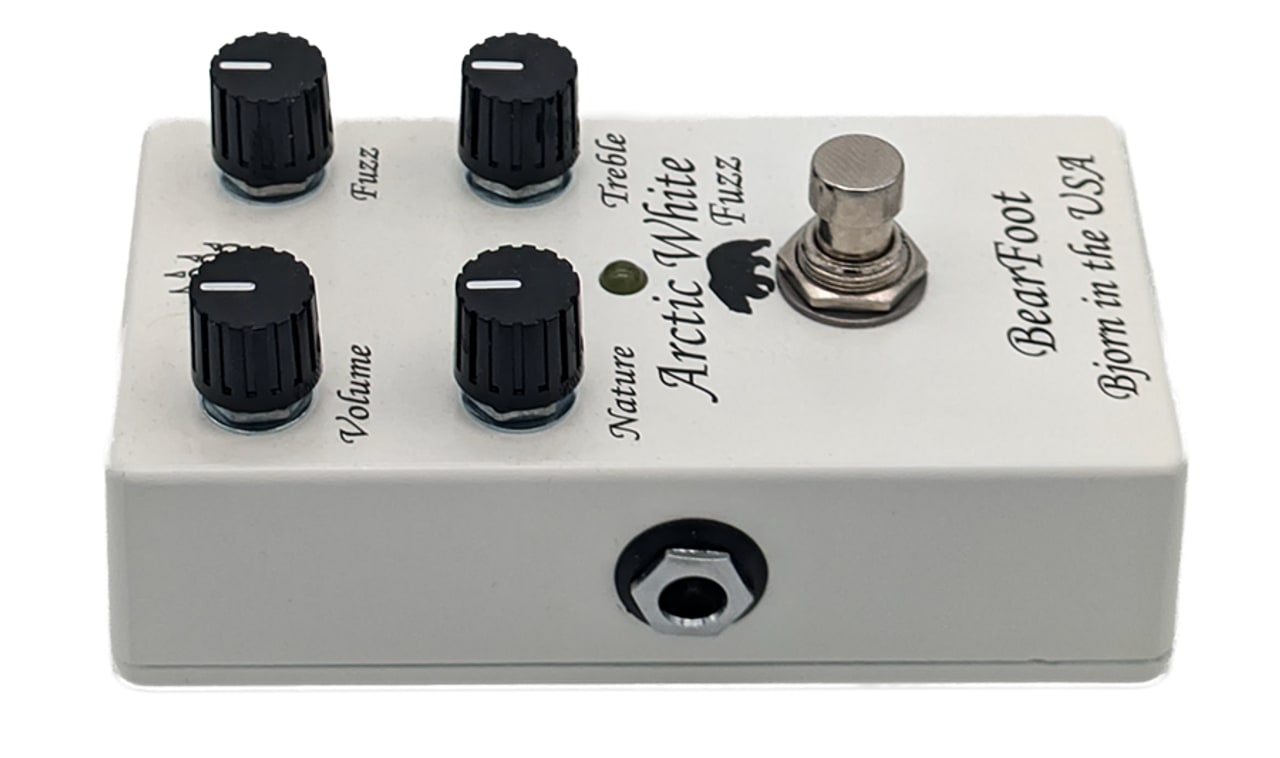

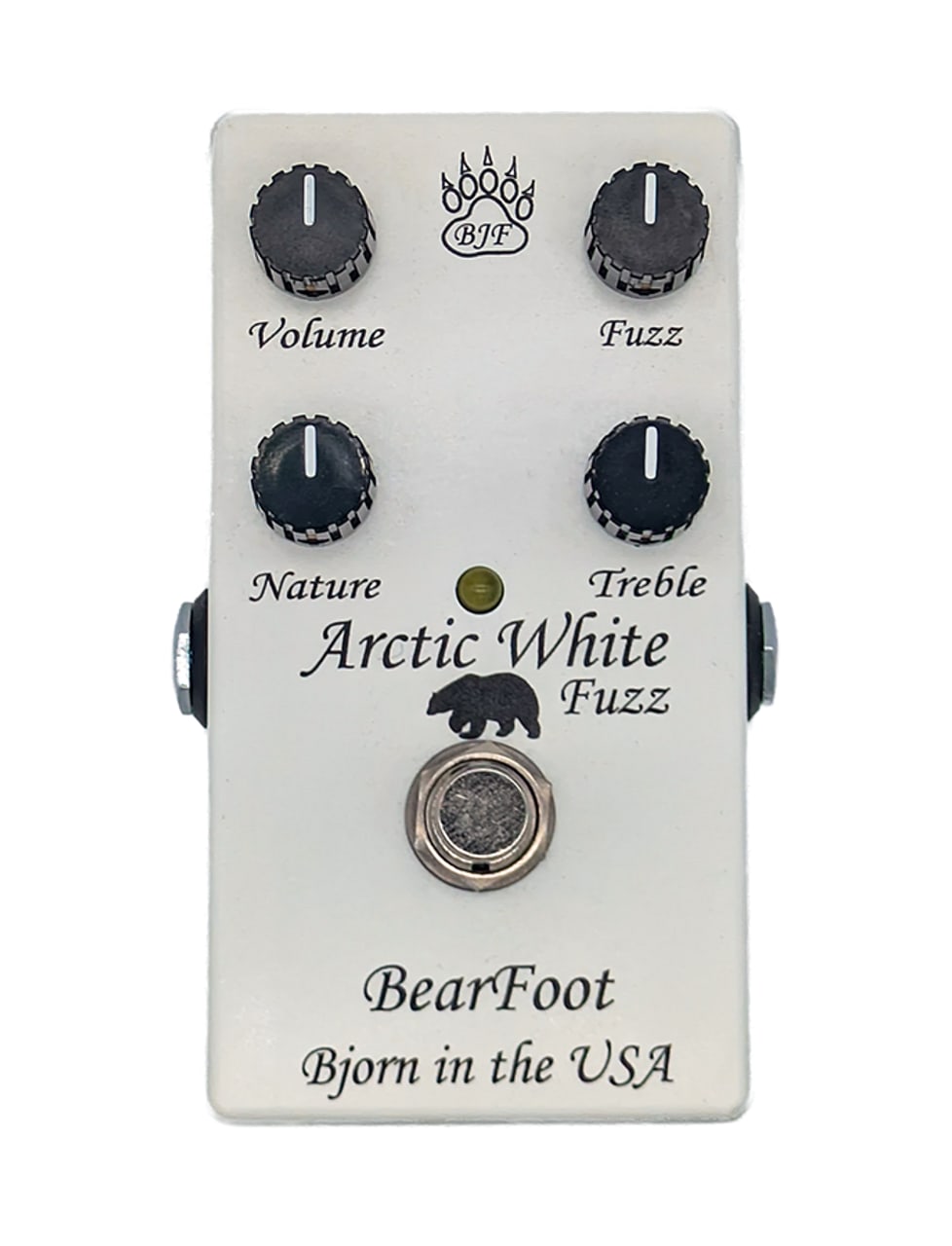

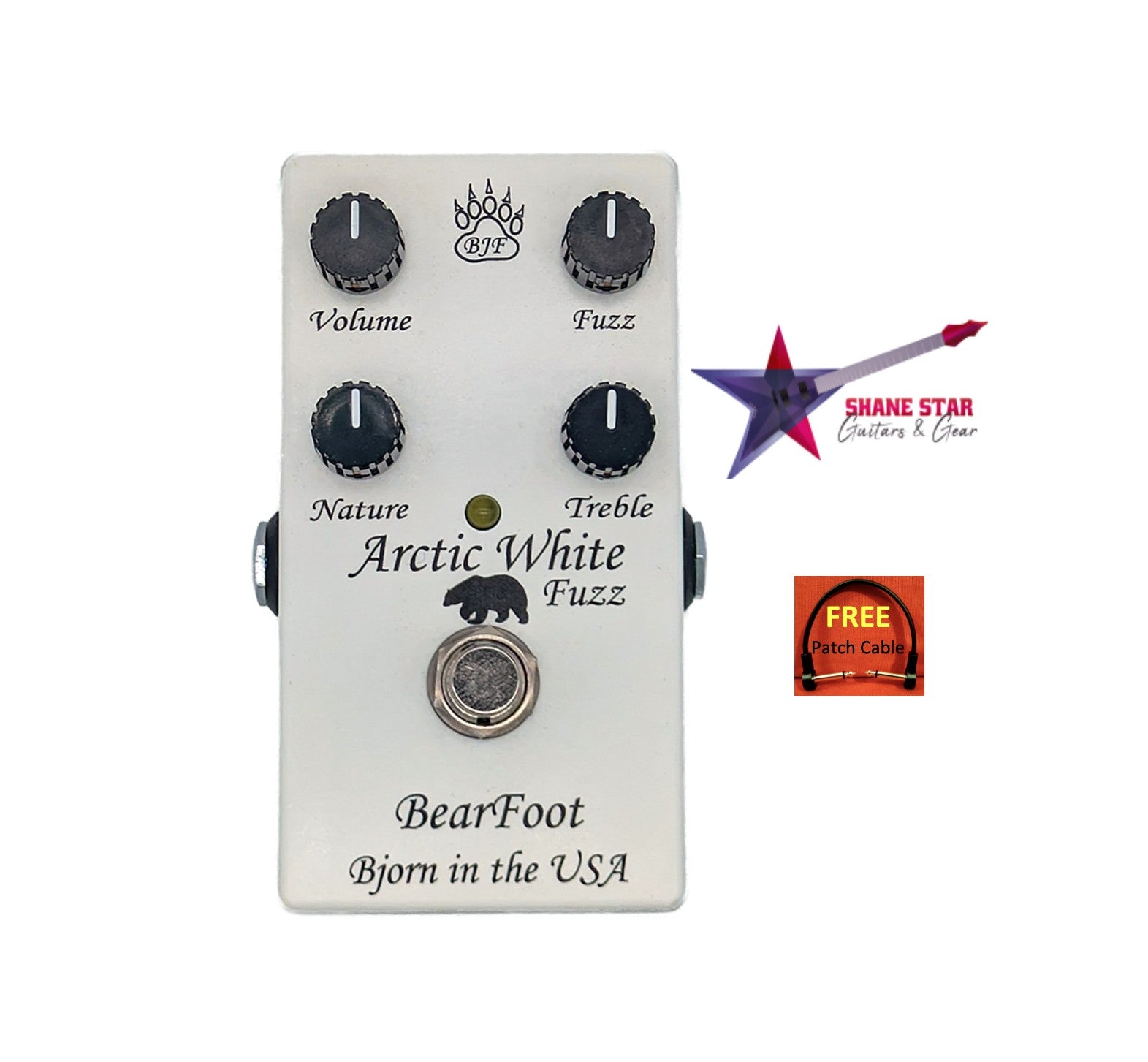

Bearfoot FX Arctic White Fuzz V2 Bjorn Juhl Design, Pedalboard Friendly Silicon Fuzz!

This is a pedalboard friendly silicon fuzz. Albeit, not a fuzz face.

Bjorn Juhl, the founder of BearFoot FX, has a rich background in guitar effects pedals. He has collaborated with Donner to teach him the circuits and help him source parts for BearFoot FX pedals.

Shane Star Guitars and Gear is an Authorized Retailer for All Bearfoot FX Pedals .

Factory Warranty, Quick Shipping, Responsive Customer Service!

Bjorn's expertise in guitar effects pedals is evident in the designs and features of the BearFoot FX products, which are known for their quality and innovative design. His work with BearFoot FX has been a significant contribution to the guitar effects community, and his contributions to the company are well-regarded by fellow musicians and builders.
Backstory from Bjorn:
"This started its life as I was making a pedalboard for guitar shows and I wanted a fuzz pedal on it. but, alas, all my favorite fuzzes required particular settings on amplifier drastically different from the other pedals on the board. So, I made a circuit that would align with typical settings on amp as used with the other pedals.
The circuit was a hybrid of some of my favorite fuzzes, but was tamed to match EQ and also to allow other uses like amp break up sounds. Think about the sounds you can get from rolling off volume on guitar or from an amp on the verge of breaking up. The first version was named the Snow White Fuzz. Later on, that evolved into the Arctic White Fuzz. After using the Snow White Fuzz for awhile, I refined the EQ and added an additional Attack control. At this point, I am thrilled with how the circuit sounds."

Controls:

Volume - Sets output level and there is enough volume on tap to use the pedal as a boost.

Fuzz - Sets input impedance and ‘clean up' as well as intensity.

Attack - Sets both the gain of the circuit as well as the complexity of sound.

Treble - A high frequency control via a staircase filter, allowing softening of harsh edges.

Specifications:

IZ depends on setting of Fuzz from about 20K to 1M Ohm@1KHz

Max load Z at output about 10K Ohms

Current draw at 9V DC about 1.5mA standby and about 2.5mA with LED lit

Voltage Range 7.5V - 18V

S/N ratio -80dB
