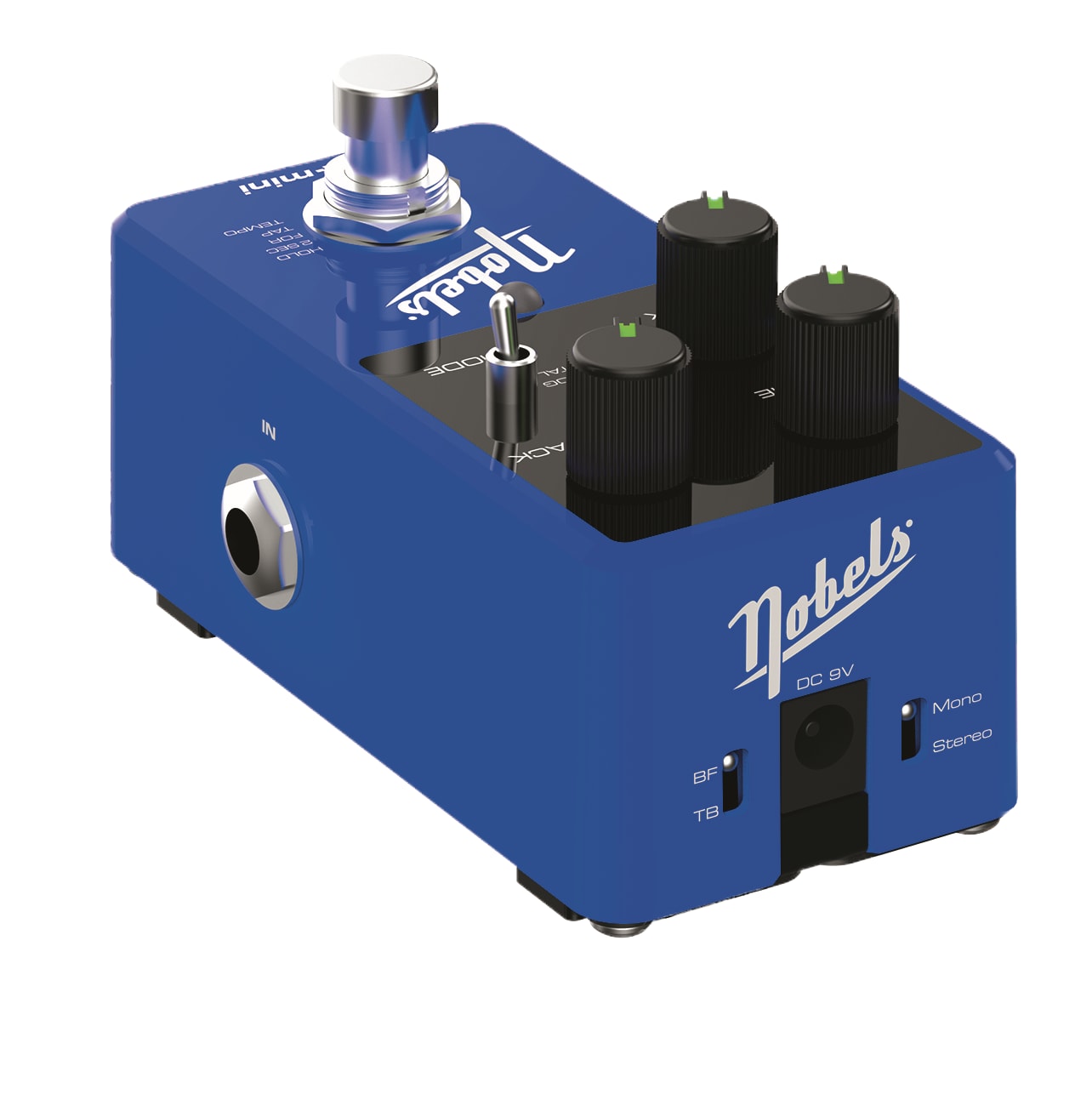

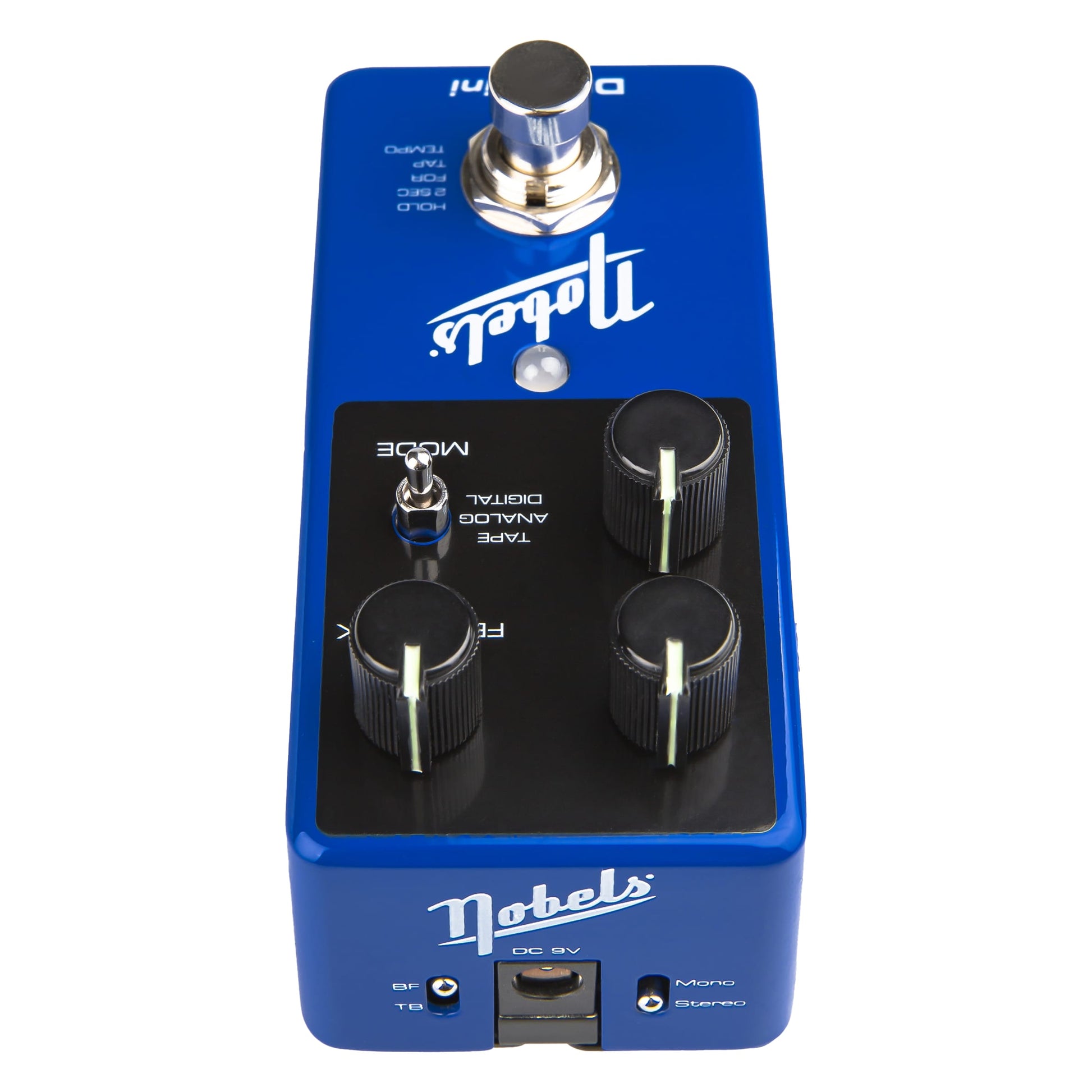

Nobels DEL-mini Delay WATCHLIST OFFER Mono/Stereo Tape, Analog, Digital + Tap Tempo! A Wealth Of Sonic Possibilities, Far Beyond Its Modest Size!

This new Delay pedal from Nobels offers great tone and is super user friendly!

Shane Star Guitars and Gear is an authorized retailer for all of the Nobels products. There is a factory warranty included. We reply quickly to questions and offers, and ship quickly too! Thank you!

• Mini Delay Effect Pedal

• Three distinct Delay modes - Tape, Analog and Digital

• Tap Tempo

• Selectable Mono or Stereo (TRS) inputs and outputs

• Selectable True or Buffered Bypass

• Glow in the Dark pointer knobs

• Metal Enclosure

• Includes 4x integrated fold-out Mounty-P Mounting Plates

• Powered by a regular 9 V DC PSU (centre -, 2.1mm, ~ 58 mA current draw, not included)

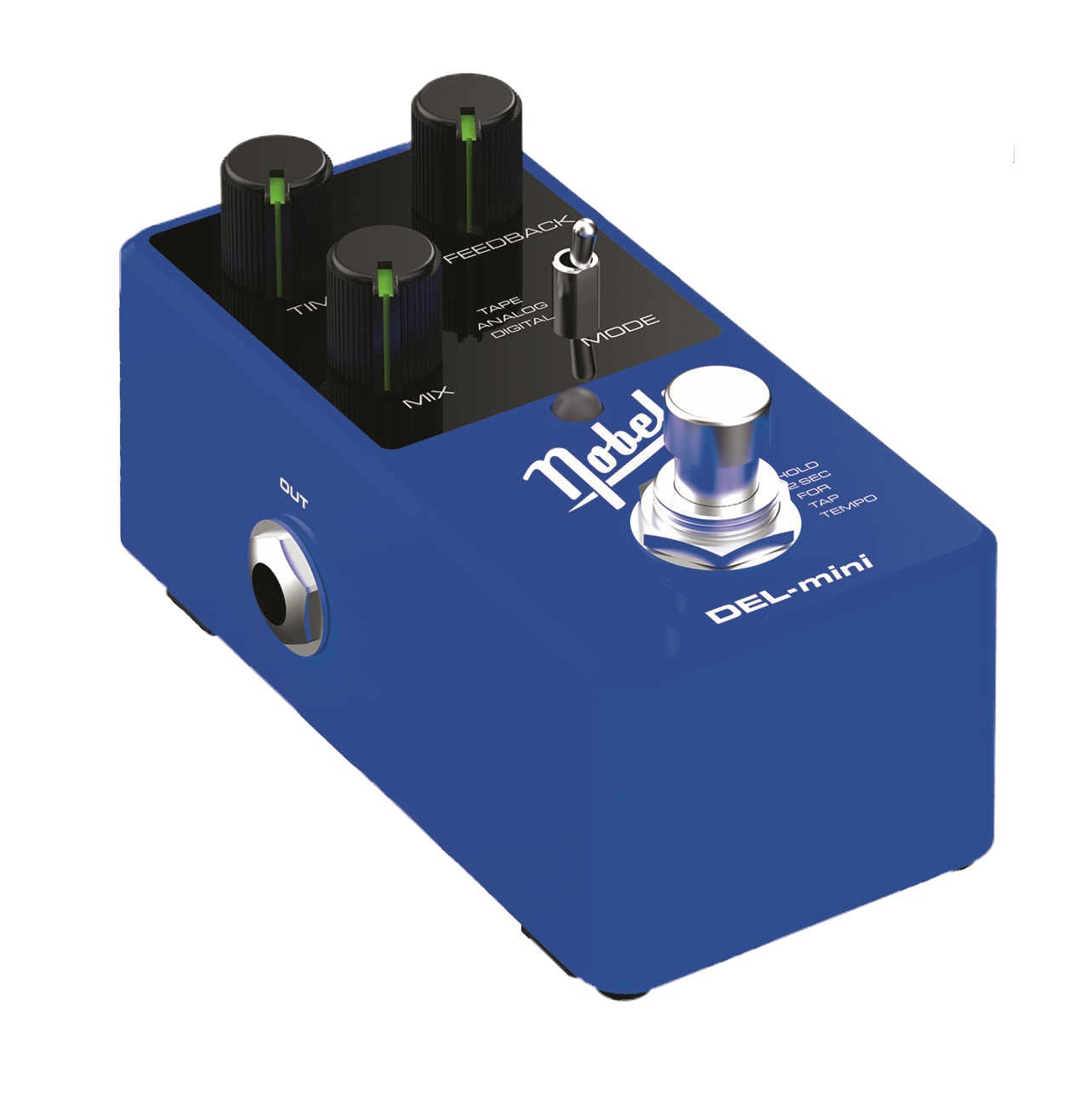

FROM NOBELS: The Nobels DEL-mini delay pedal combines an outstanding sound selection of legendary echoes, practical and easy switching and application possibilities in a mini pedal. Providing an expertly curated selection of timeless delay effects with either a pristine mono or spacious stereo image, this diminutive pedal delivers a wealth of sonic possibilities, far beyond its modest size.
And then there are the little Nobels extras in the form of fold-out Mounty-P mounting plates and "Glow in the Dark" pointer buttons . All this at an extremely attractive price !

DEL- mini ™

Compact Stereo Delay Pedal

The convenient mode switch allows you to change between

three carefully crafted delay flavours including Tape

(up to 553 ms), Analog (up to 402 ms) and Digital (up to

1000 ms). These three modes all faithfully capture the

iconic delay tones that have shaped music across genres,

past and present.

FEATURES

Adding to its flexibility, the DEL- mini features full tap tempo functionality in a single switch design. Simply holding

the footswitch for approximately two seconds enters the

pedal into "Tap Tempo Mode", following which the pedal

will respond to rhythmic tapping instantly. Further defying

expectations based on its compact appearance, there

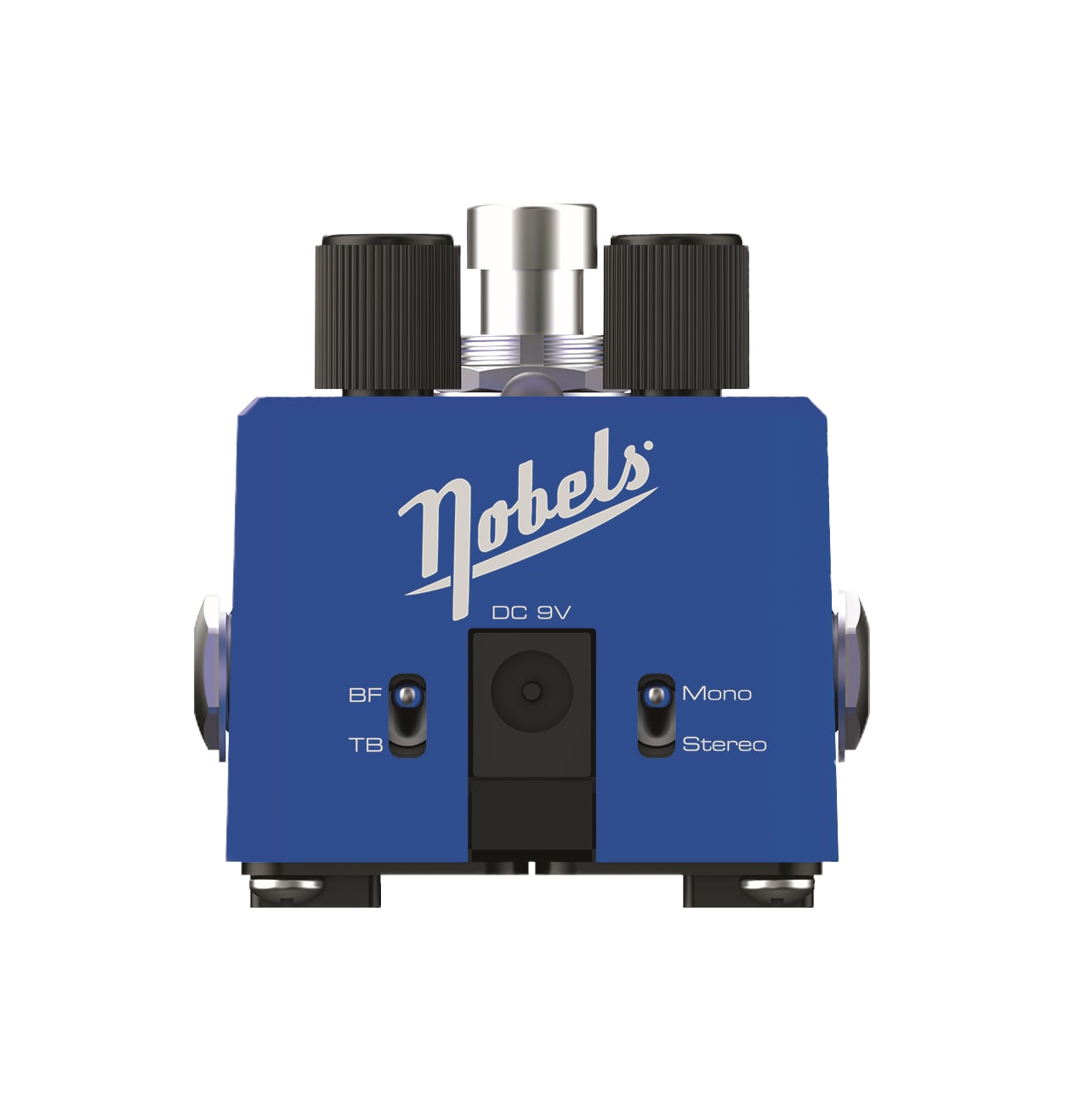

are dedicated toggles for selection between mono and

stereo (TRS) operation as well as true or buffered bypass

modes, making the pedal suitable for almost any musical

situation, anywhere, any time.

Power (DC): stabilized & filtered power supply 9 Volt DC (optional)

DETAILS

Power connector: 2.1 mm / negative center

Consumption: less than 100 mA

Input impdance: 1 M Ohm

Output impedance: 10 K Ohm

Max. input level: 6,6 dBu (1 kHz - 1% THD+N)

Dynamic Range: 106 dB (w/o effect through DSP Buffer)

DSP Processing: 48 kHz / 32 bit - A/D D/A Sampling Rate 48 kHz / 32 bit

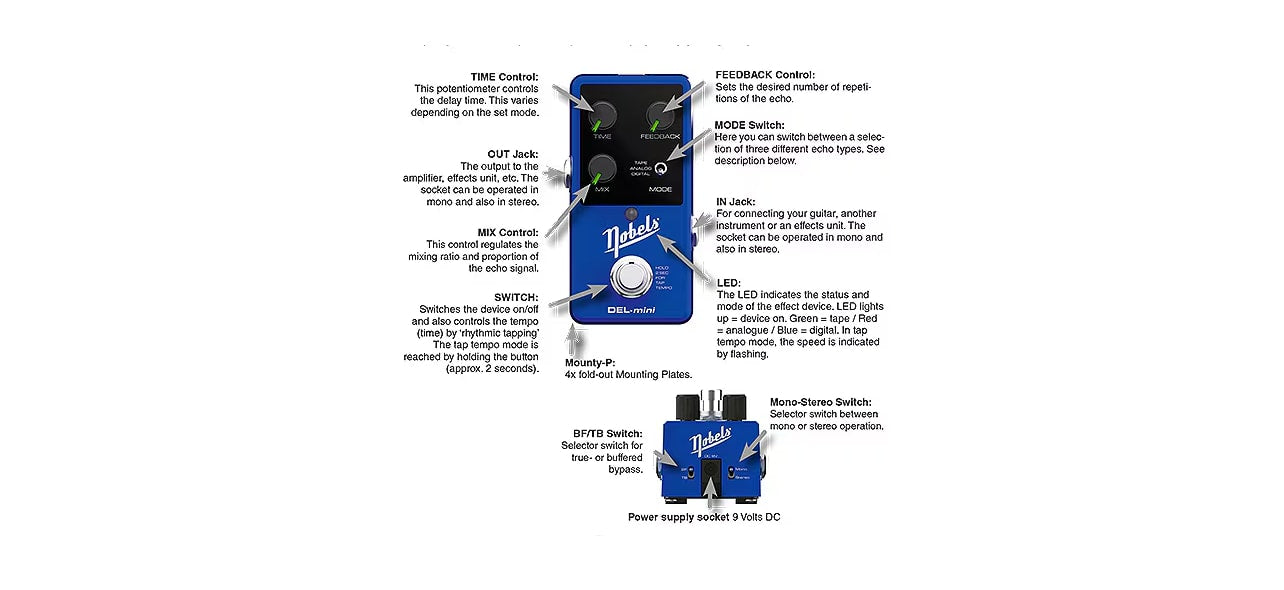

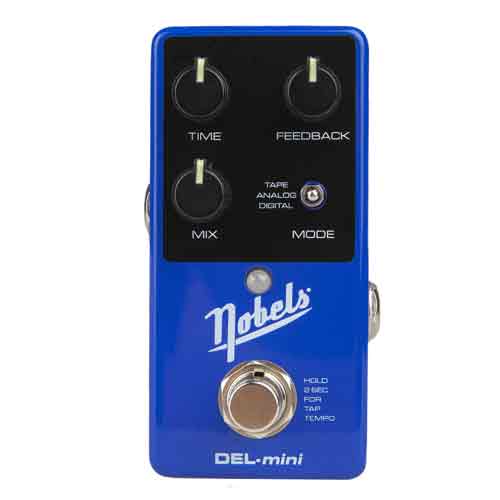

Controls: Time, Feedback, Mix, („GitD" knobs)

Switches: Mode, Bypass-Selector, Mono/Stereo, On/Off (Tap Tempo)

Jacks: DC, Input TRS 1/4" (6.3 mm), Output TRS 1/4" (6.3 mm)
